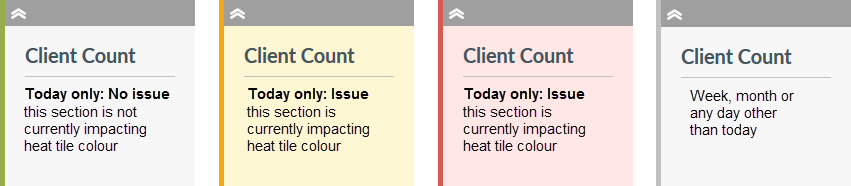

When viewed for today only, the sidebar for each section on the Details page gives an indication if it is currently impacting the associated heat tile colour. This applies for collapsed sections also.

Today only

Colour coding applies to Channel Load, Client Count and Access Point sections.

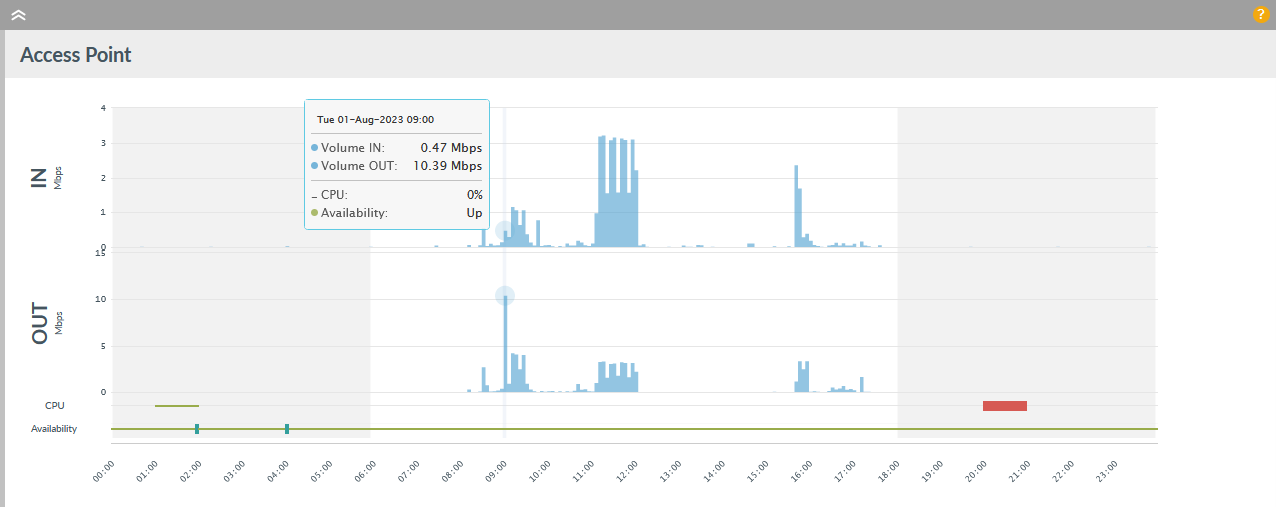

A vertical bar is drawn on the chart for each poll (typically every five minutes).

Highlight does not change the colour of heat tiles nor send alerts for volume.
Note: Volume may not be available, depending on the equipment manufacturer.

Vertical axis

Scaling adjusts depending on data

Horizontal axis

Adjusts according to the selected time period to show "hours" in day view and "days" in week and month views; redraws if the time zone is changed at the top right of the Details page

Zoom options

Drag: click, hold and drag across the chart to zoom into a time period; repeat if needed and   Reset zoom   if complete
Note: all charts are synchronised so they zoom in and out together
Click: on a week or month view, click on the chart to jump to that specific day view

Highlight displays the values for each data point in the time period:

Day

Shows multiple data points per hour (one for each polling period, usually one to five minutes)

Week

Shows 24 data points per day (every hour), Maximum for each hour is shown

Month

Shows 6 data points per day (every 4 hours), Maximum for each 4 hour period is shown

For any time period, hover on a point to see date, timestamp, volume in/out, CPU and availability status. If hovering on a week or month, there may be multiple availability states in the time period. See the Availability section for more detail.

CPU utilisation is shown as a grey line if unavailable or a thicker green line up to 50%. Hover on the chart to see timestamp and precise values. Above 50% it's shown in coloured blips:

Highlight does not change the colour of heat tiles nor send alerts for CPU utilisation.
Note: CPU utilisation may not be available, depending on the equipment manufacturer.

Coloured blips, with the priority and meaning shown below, are drawn on the Availability line.

Week/Month: Priority on availability states

For week or month, if more than one availability event occurs during the time span (one hour for a week, 4 hours for a month), then only one blip is shown on the Availability line using the priority shown in the table above.

All availability events for the time span are listed in the tooltip when hovering on a point.

Grey/White backgrounds - Business hours

By default, the chart shows non-business hours with a vertical grey background and business hours with a vertical white background on day and week views. Business hours are not shown on a month view. Toggle off to show alternate horizontal grey and white background areas.

Business hours are the time periods (to the nearest hour) that a business is operational. Highlight uses business hours when displaying charts on the Details page, filtering reporting results and generating alerts. Default values are 06:00 to 18:00 Monday through Friday with Saturday and Sunday excluded. However, you may see different settings if the business hours on a parent folder or location have been changed. Business hours reflect the local time zone for the location.

Find out more about business hours.

Purple backgrounds - Maintenance

Any purple background areas on the chart show current and past maintenance periods. Watches in maintenance do not send alerts, change the colour of heat tiles or decrement the availability figure for the time period.

Find out more about maintenance indicators on the details page.

*This is supported for all vendors except Meraki WiFi via API.
